Build Big
With a build volume 7.5x times bigger than the Fuse 1+ 30w, and significantly larger than existing competitors, the Fuse X1 produces full size parts and large production runs in days.
High Productivity

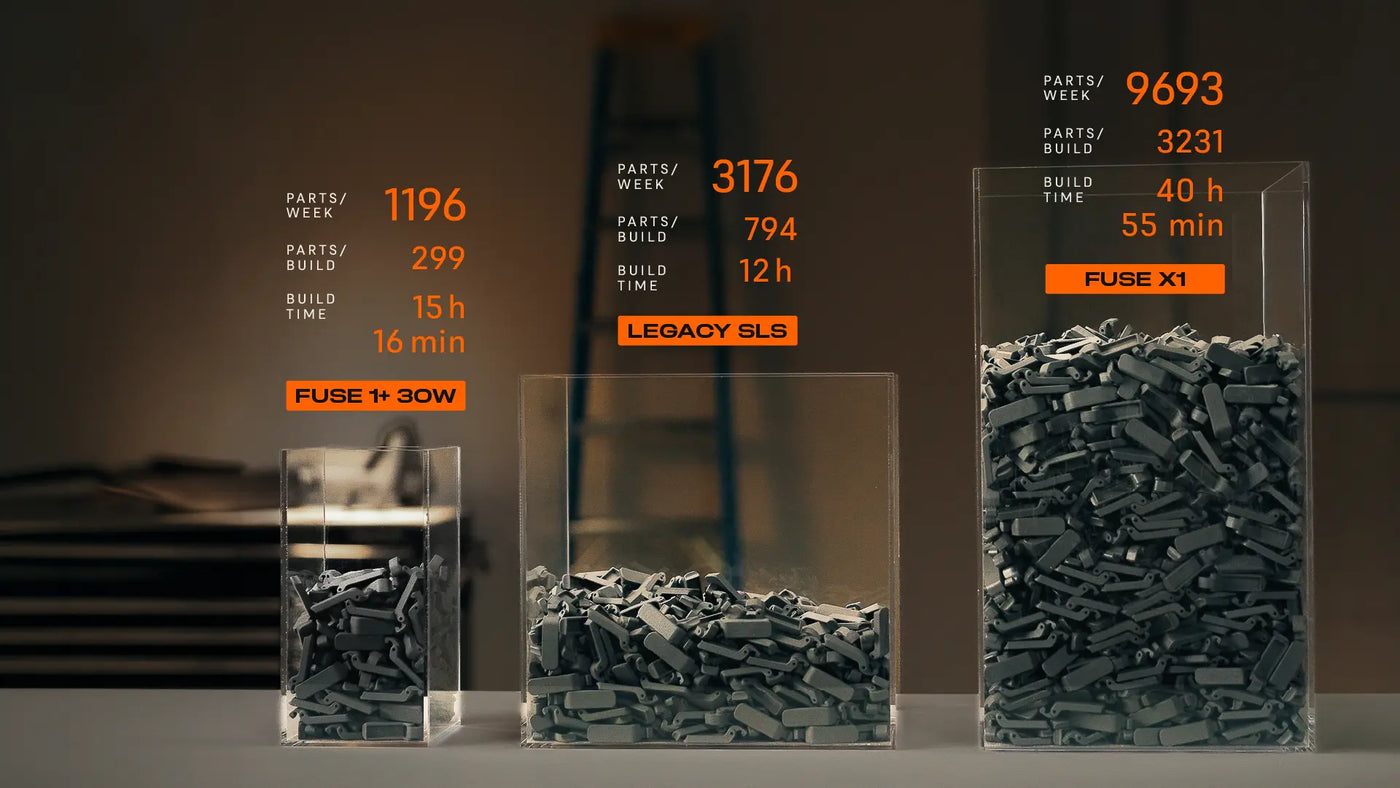

With 30%+ packing density and a 61.5L build volume, the Fuse X1 fits more parts in a single build than competing industrial SLS and MJF systems, adding up to 1000s more parts week.
Low Part Cost
Scale production with 50% lower cost per part compared to legacy powder bed fusion systems. Otherwise, help shorten prototyping timelines by up to 90% with up to 9x less labour.

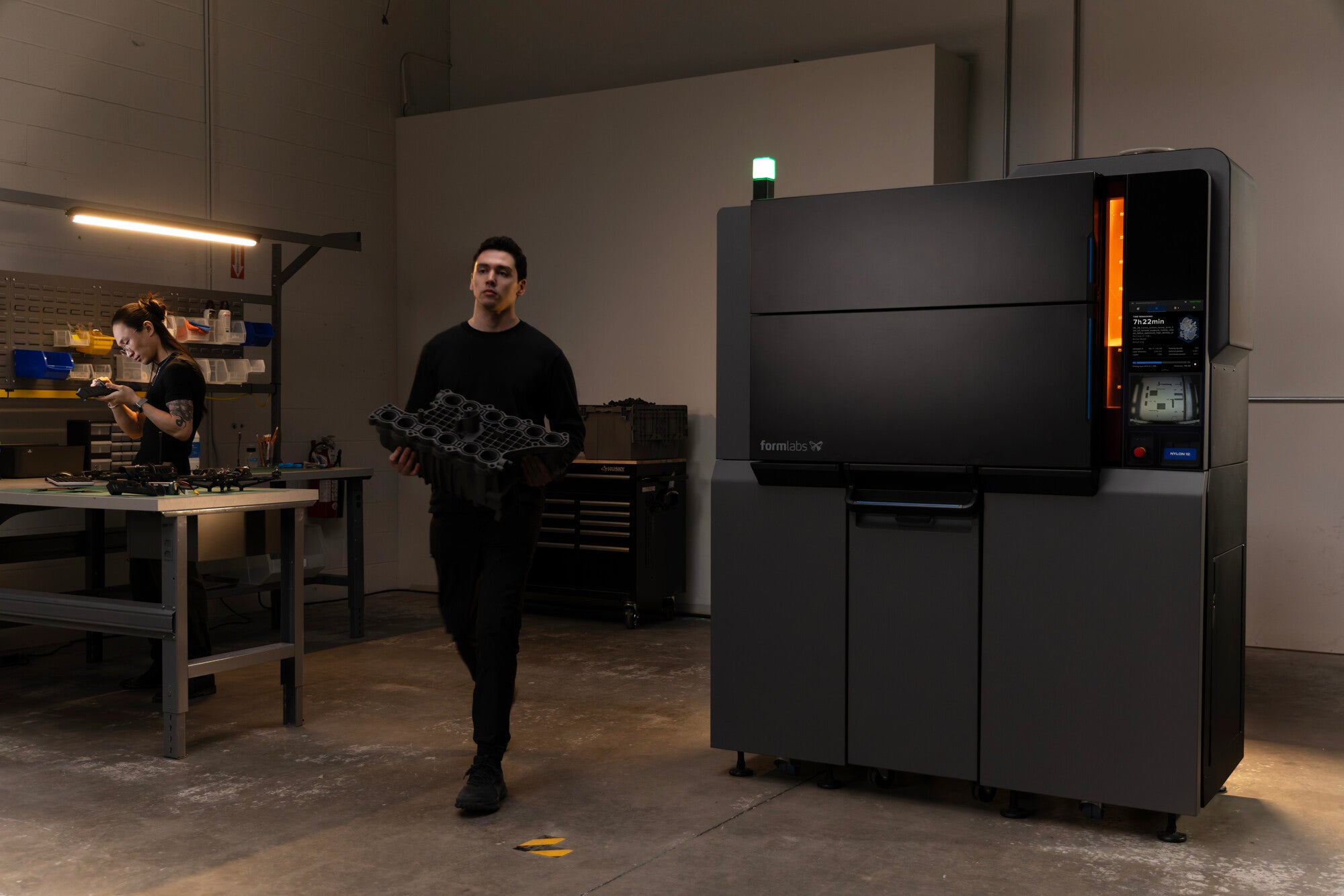

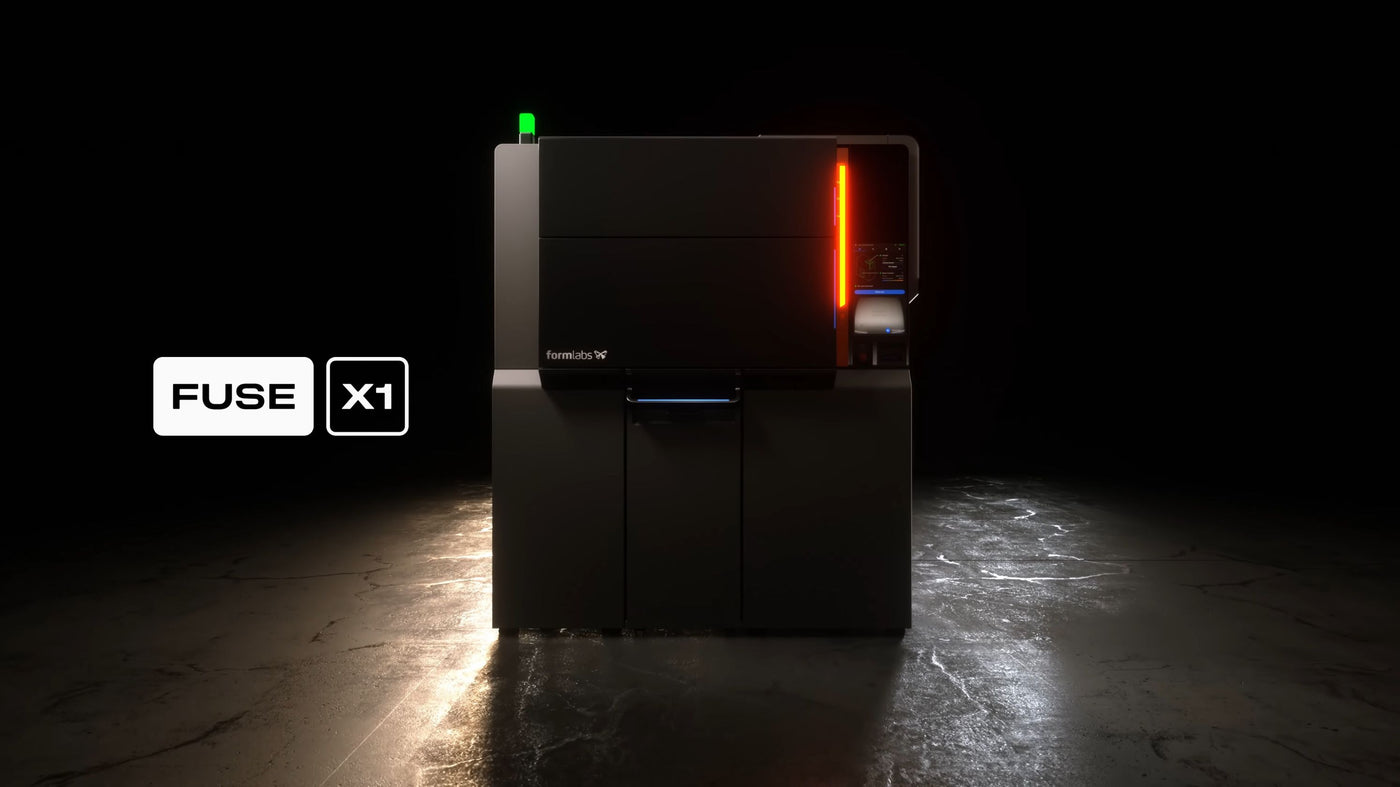

Formlabs Fuse X1
Industrial SLS 3D Printer
The Fuse X1 large format SLS printer delivers huge parts same day - at half the cost and 3x the throughput of the competition. Plus, it’s backed by the quality and reliability of Formlabs.
330W x 330L x 565H mm
Massive Build Volume

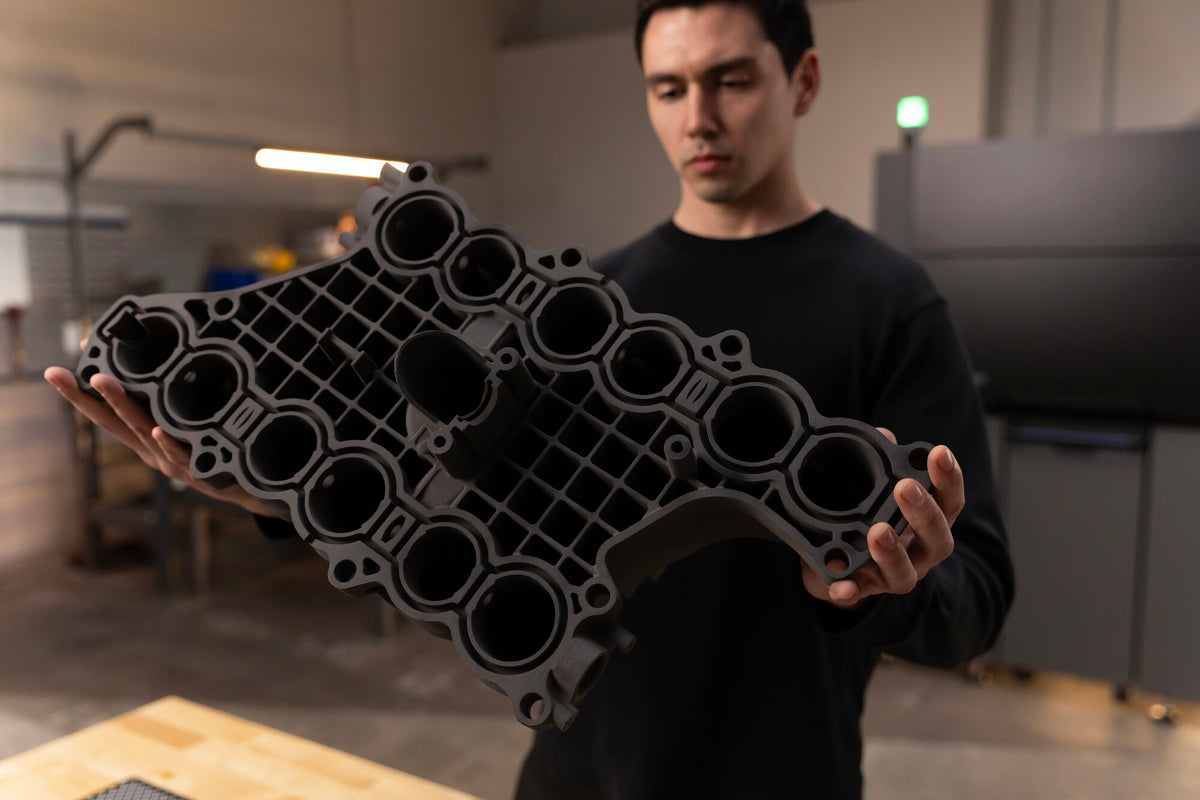

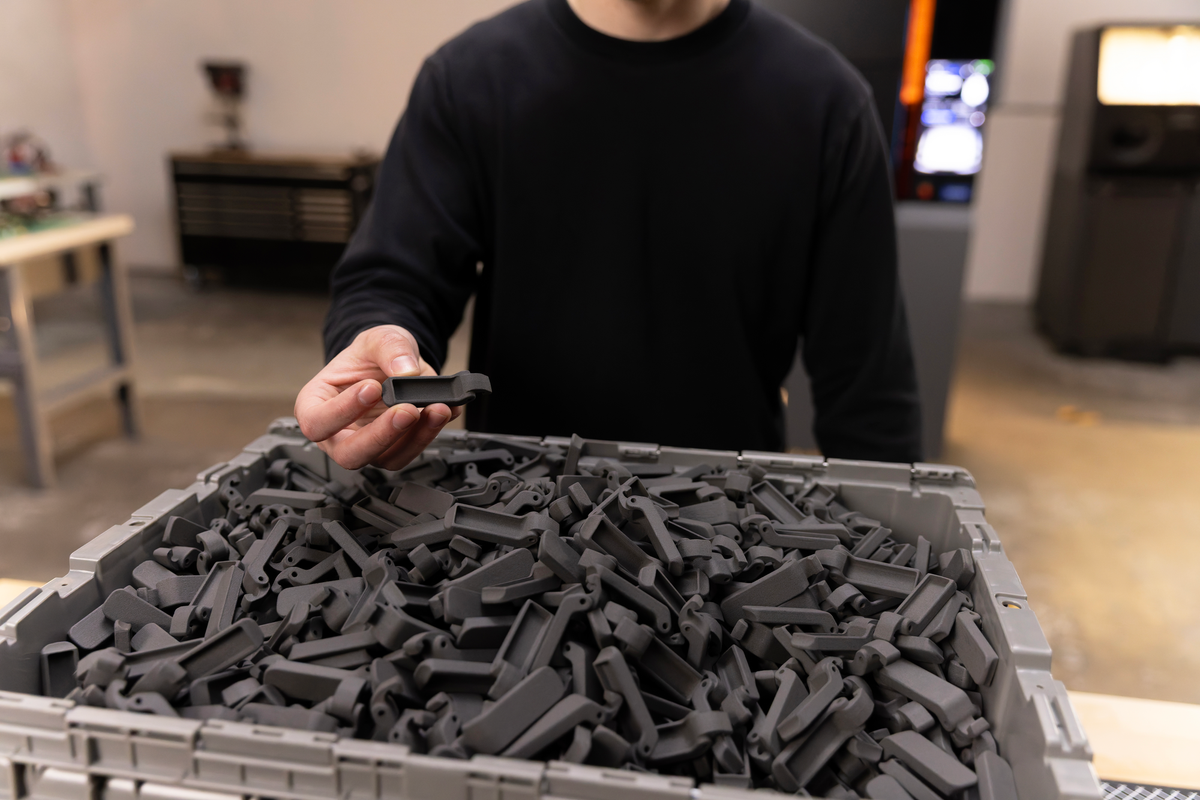

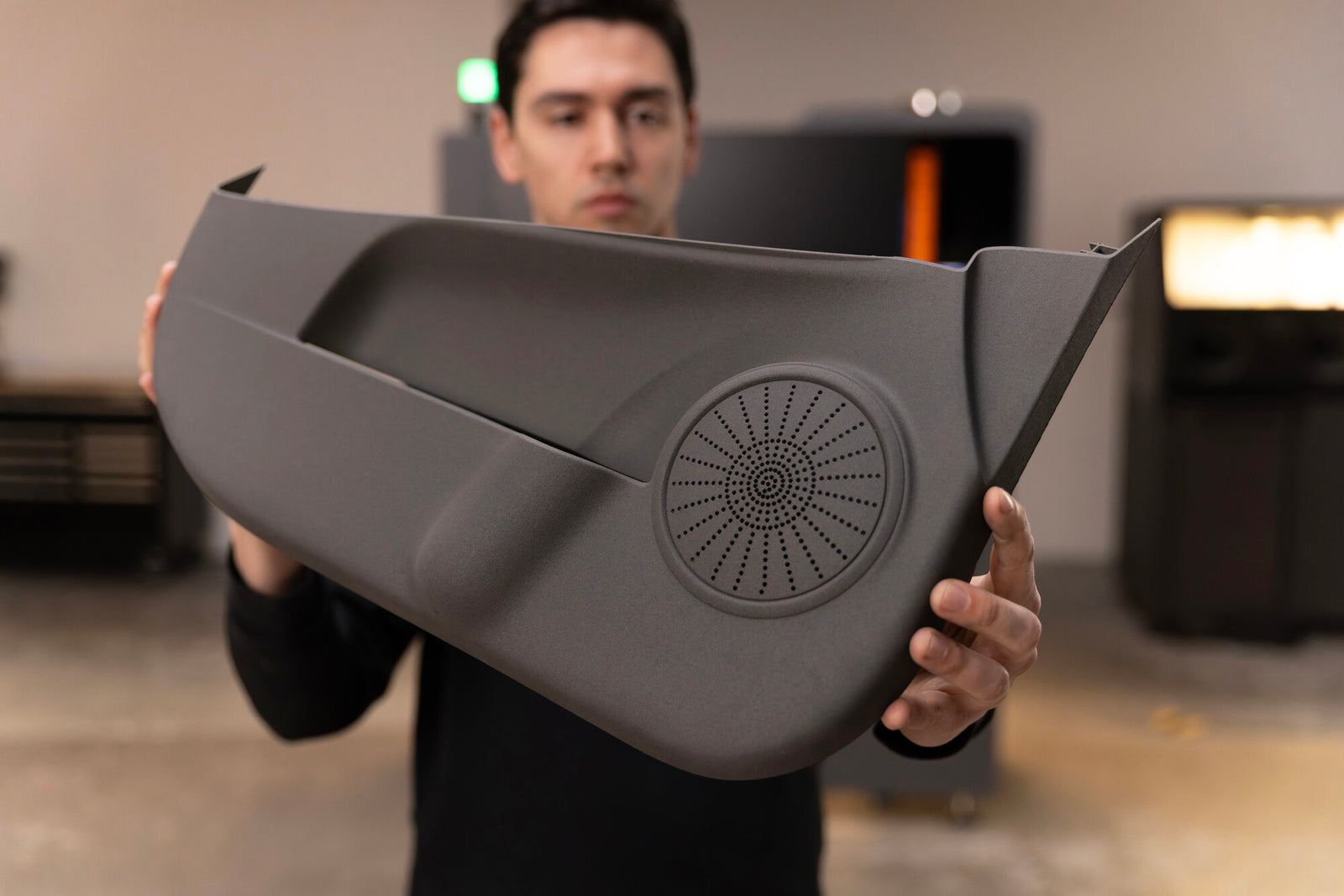

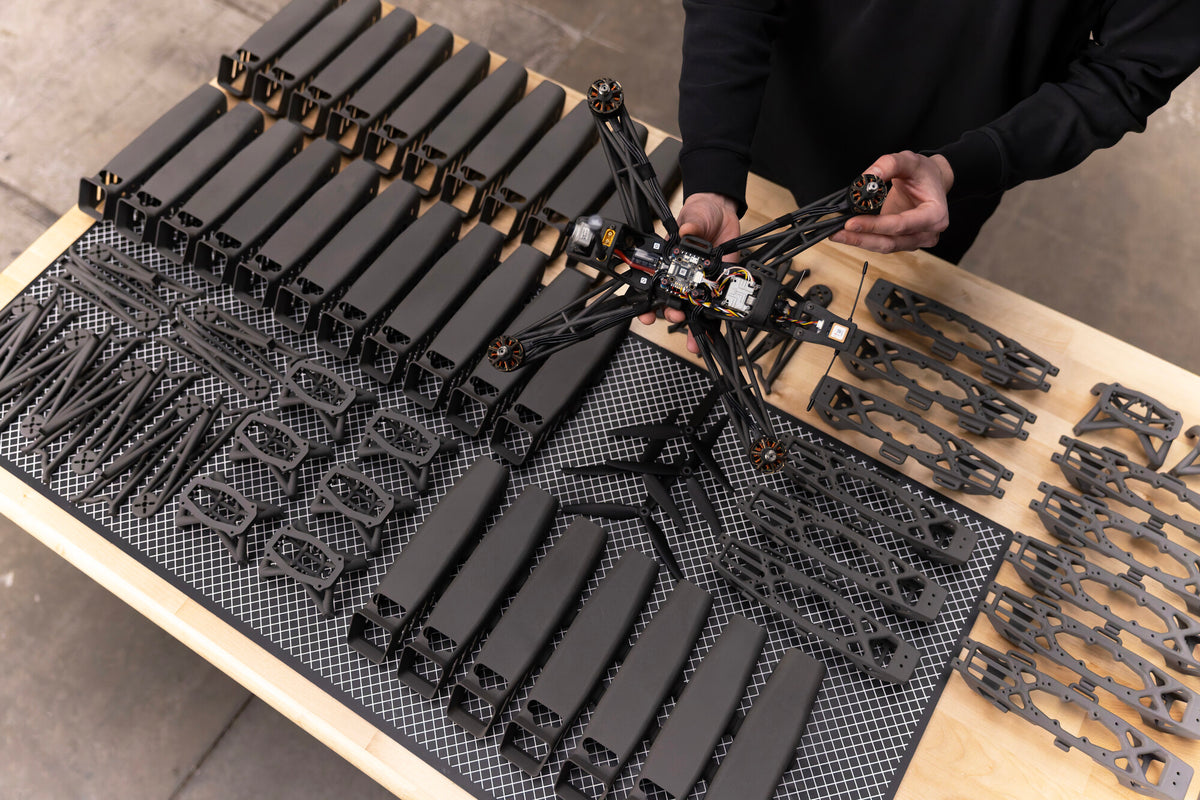

Deliver full-size parts overnight, or production runs within days. Perfect for production batches of end-use parts, high mix builds chambers, and full scale prototypes.

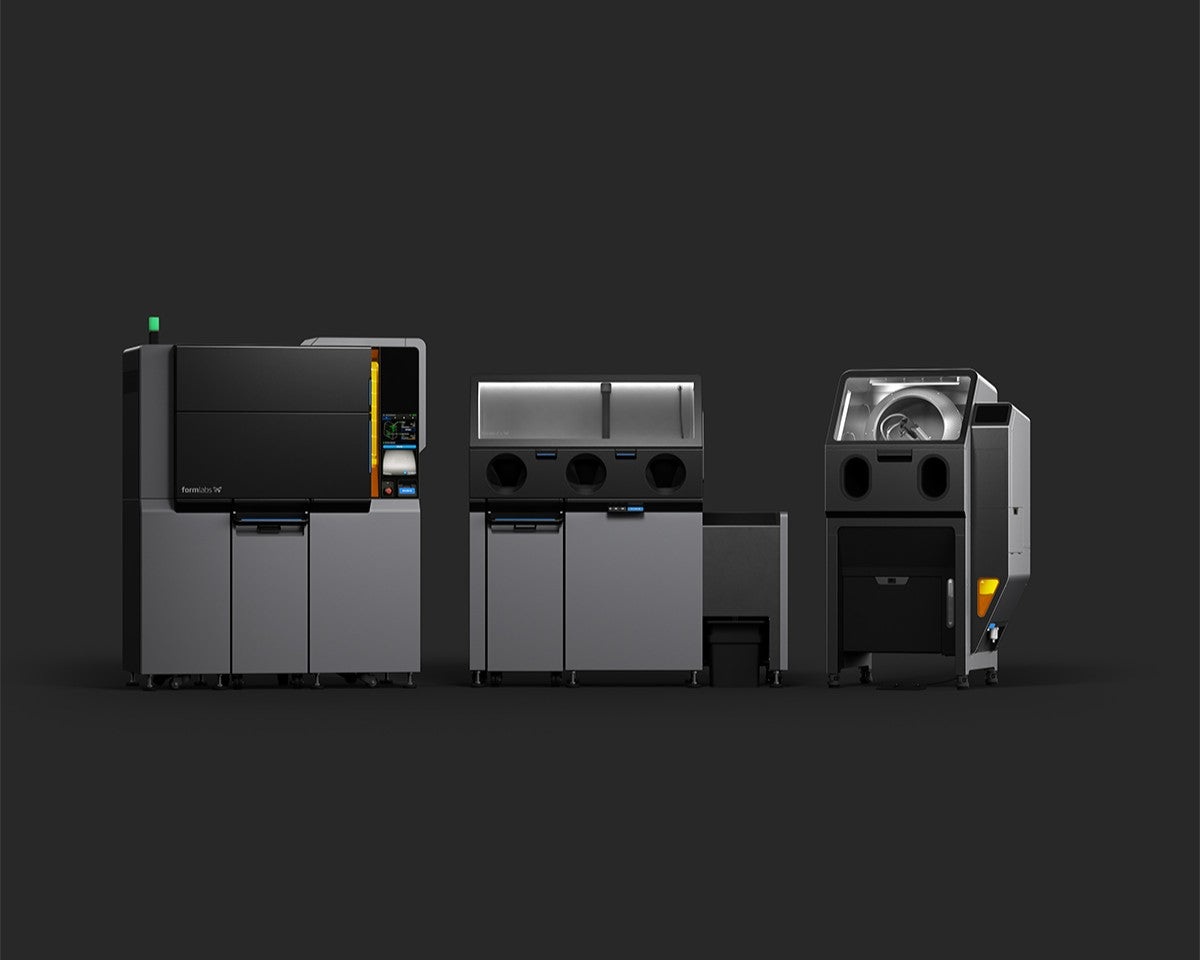

Fuse X1, Sift X1 & Fuse Blast
The Full X1 Package

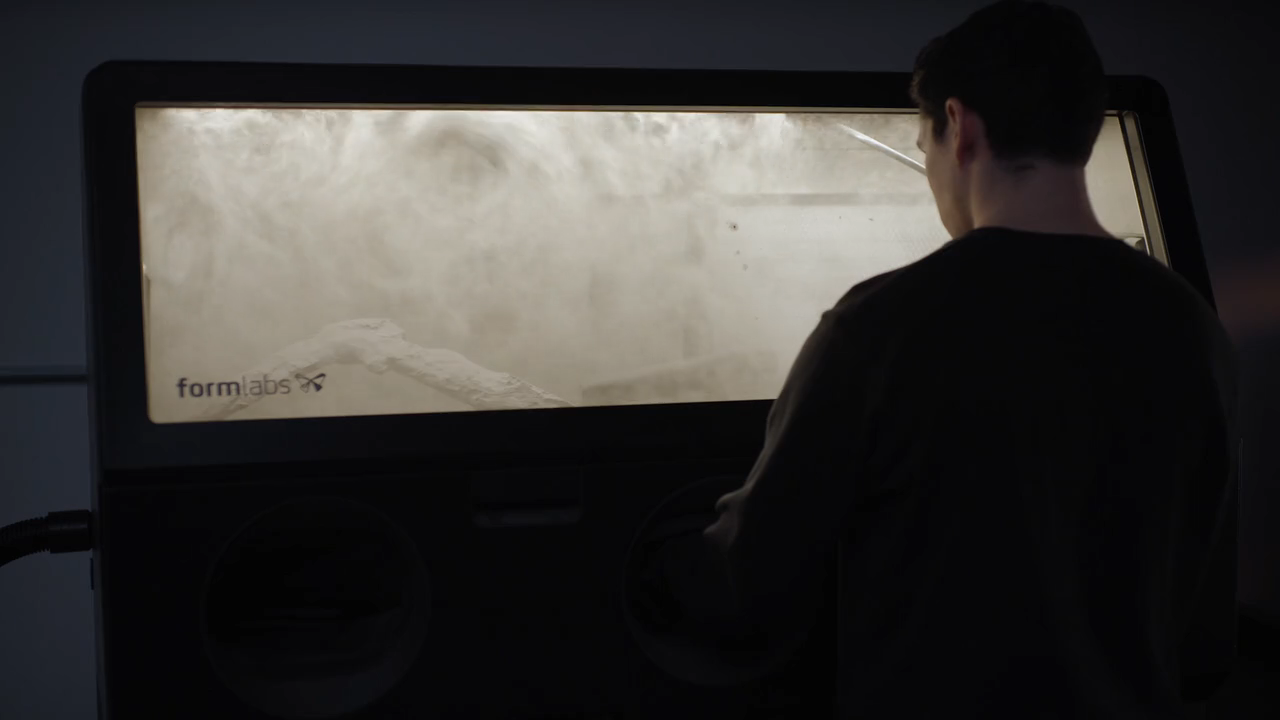

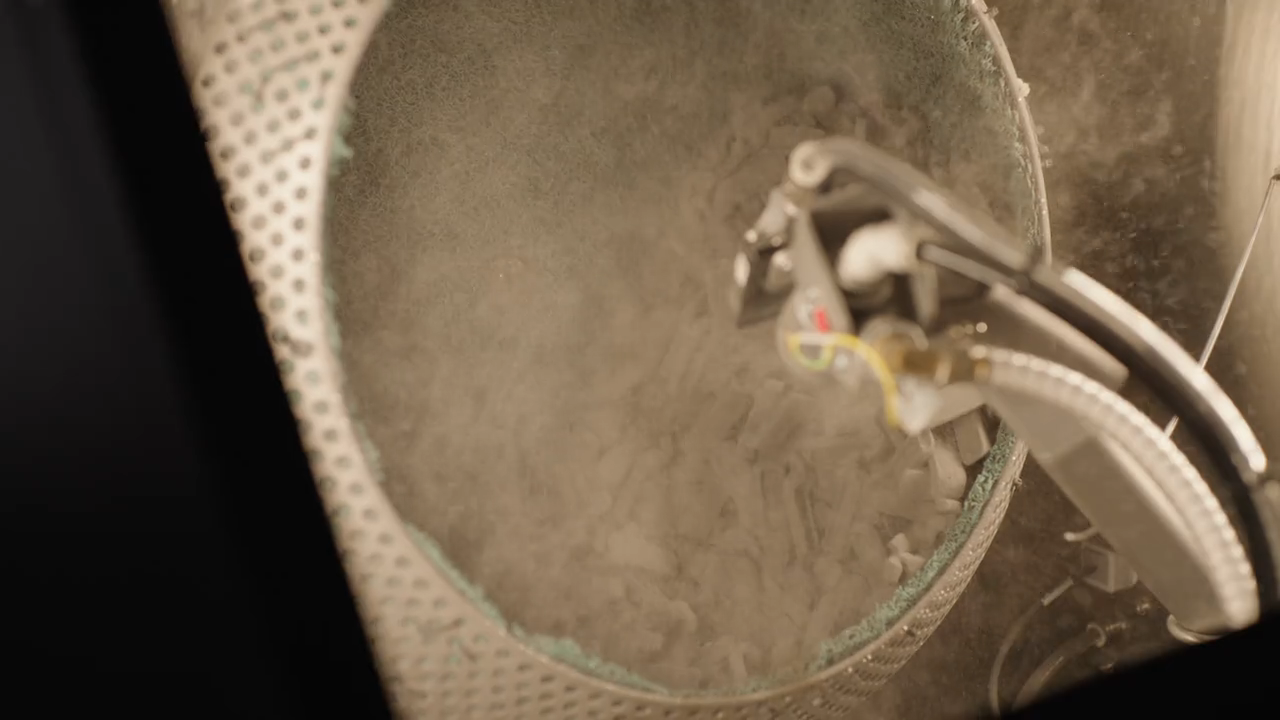

The Fuse X1 3D printer combined with the Sift X1 and Fuse Blast to form the ultimate large format SLS printing system. Easily print, unpack, and clean your parts with the X1 package.

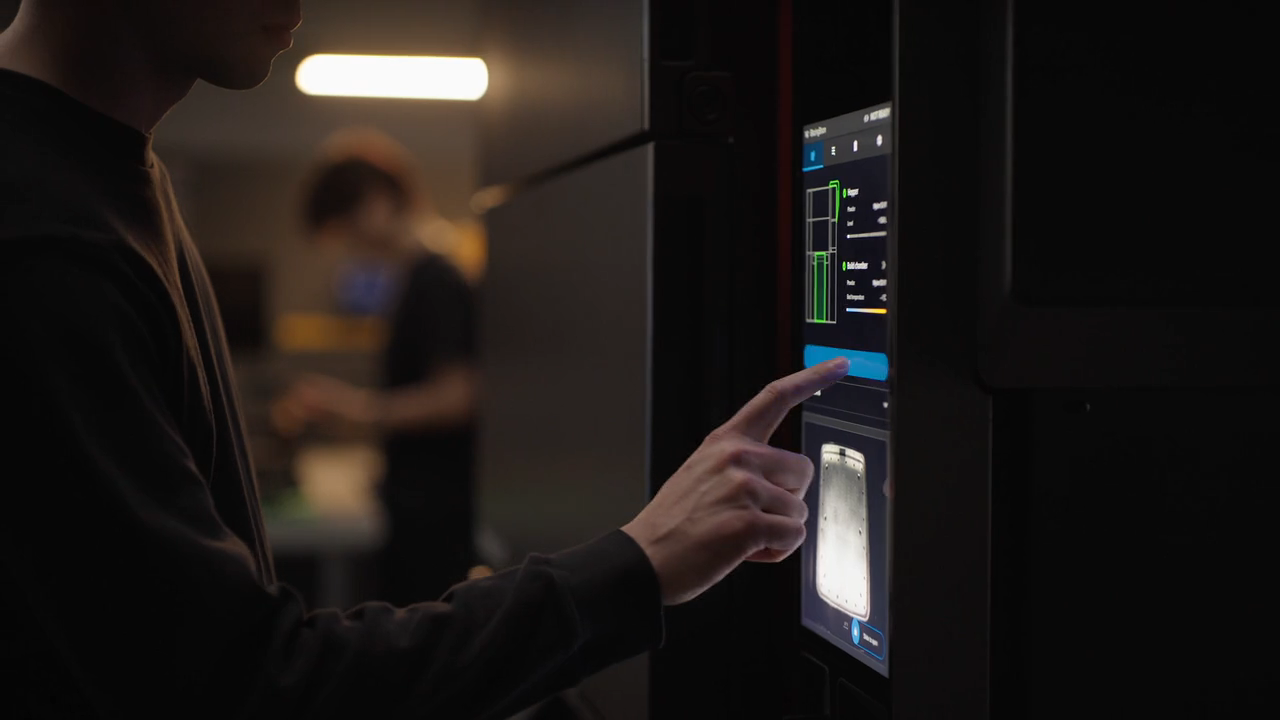

An industrial workflow anyone can run

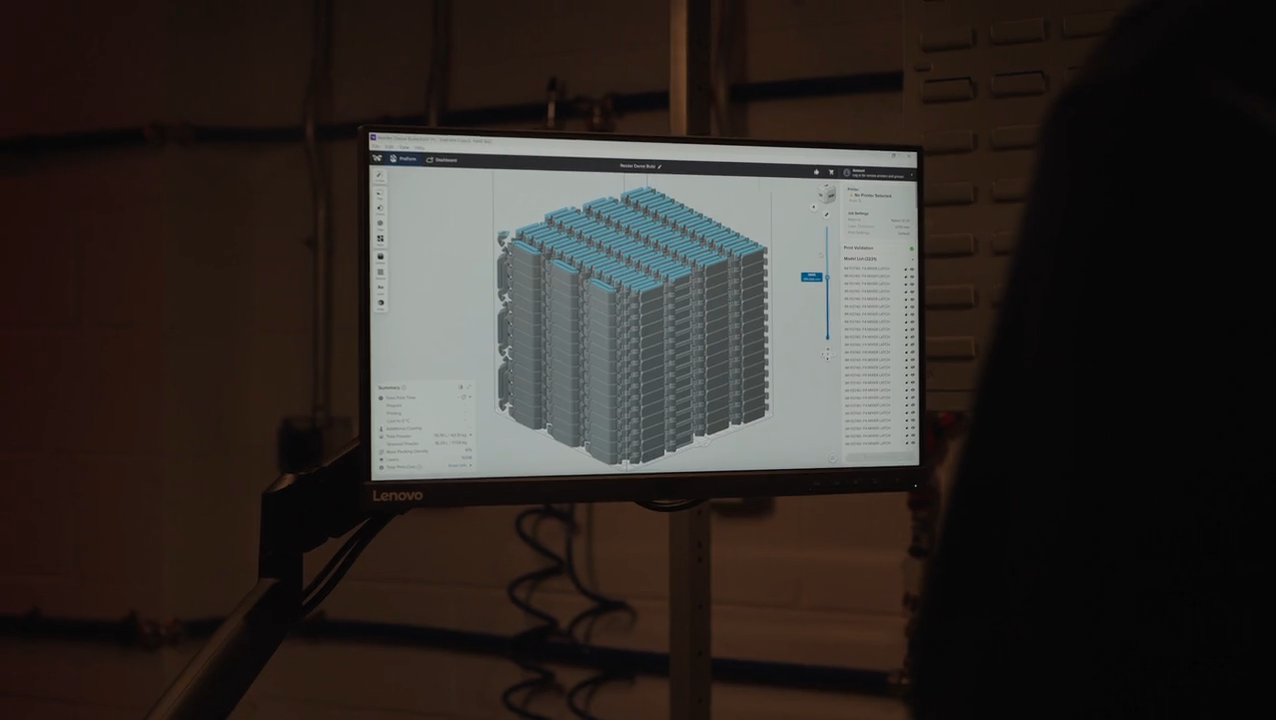

Fuse X1 Workflow

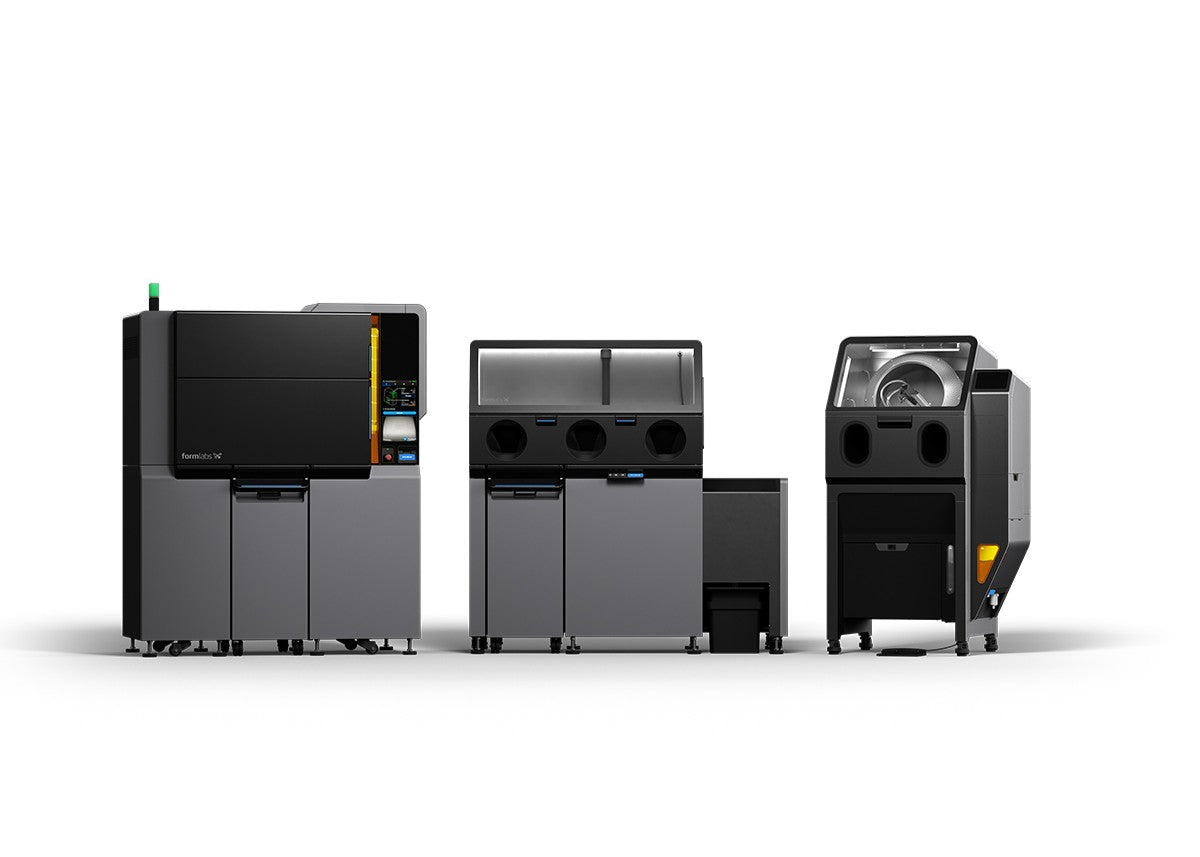

The Fuse X1 & Accessories
Products in the Fuse X1 Ecosystem
Fuse X1 Technical Specifcations
Read the main Fuse X1 technical specification below or view our Fuse X1 PDF to learn more.
Build Volume
330×330×565 mm
61.5L
Laser Type
120 W
Ytterbium Fiber
Resolution
Laser spot size of 330 microns
Layer thickness of 110 microns
Packing Density
30%+ (volume)
48%+ (mass)
Material Throughput
Sinter rate of 0.330 kg / hour
Refresh rate of as low as 20%
